Frame
Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5 mm QR
Fork
Dual Sport steel, internal brake routing, mudguard mounts, rack mounts, ThruSkew 5 mm QR
Hub Front
Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Skewer Front
139x5 mm bolt-on
Hub Rear
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Skewer Rear
152x5 mm QR
Rim
Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Spokes
14 g stainless steel, black
Tyre
Bontrager GR0 Comp, wire bead, 60 tpi, 650x50 mm
Max Tyre Size
27.5x2.00"
Shifter
Size: XS, S, M, L, XL Shimano EF500, 2-speed Size: XS, S, M, L, XL Shimano EF500, 8-speed
Front Derailleur
Shimano Tourney TY606, 31.8/34.9 mm clamp, top swing, dual pull
Rear Derailleur
Shimano Acera M3020-8, 40T max cog
Crank
Forged alloy, 46/30, chainguard, 170 mm length
Bottom Bracket
Sealed cartridge, 68 mm
Cassette
Shimano 8-speed, 12-32T
Chain
KMC Z8.3
Pedal
Wellgo nylon platform
Max. Chainring Size
1x: 42T, 2x/3x: 48T
Saddle
Bontrager Sport
Seatpost
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length

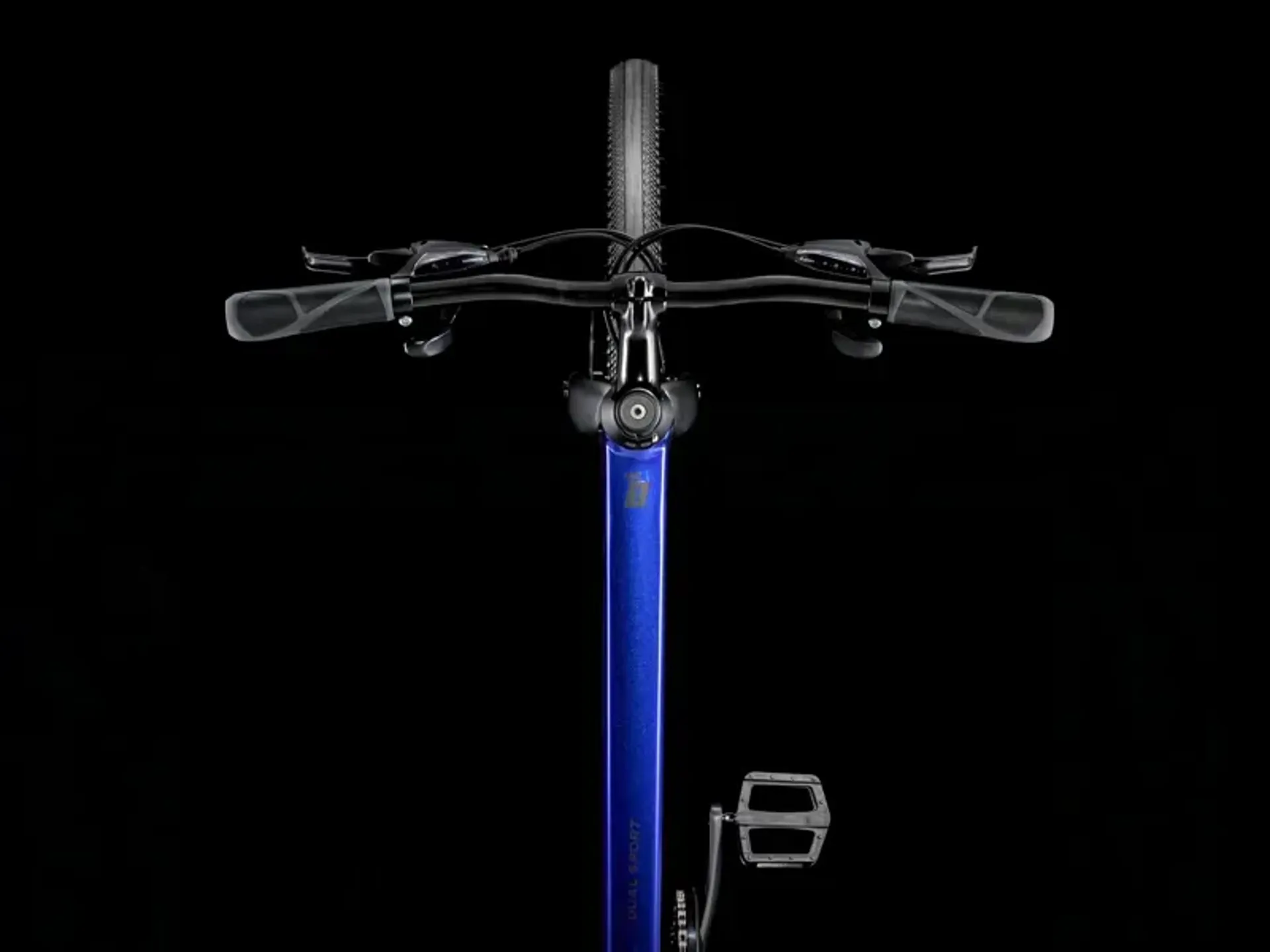

Handlebar
Size: XS, S, M Bontrager Riser, steel, 25.4 mm, 30 mm rise, 600 mm width Size: L, XL Bontrager Riser, steel, 25.4 mm, 30 mm rise, 620mm width

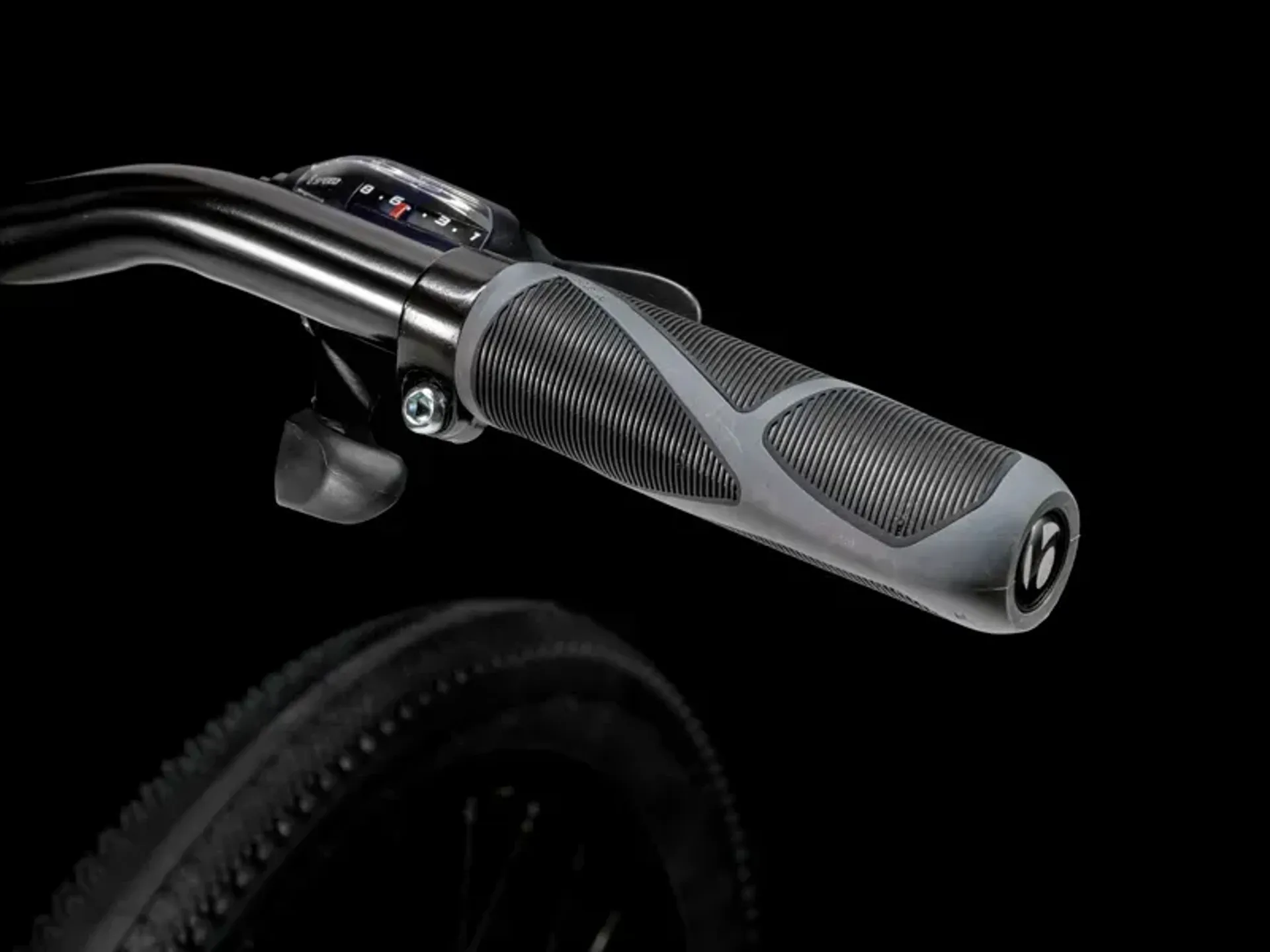

Grips
Bontrager Satellite
Stem
Size: XS, S, M Bontrager alloy, 25.4 mm clamp, 10-degree, 90 mm length Size: L, XL Bontrager alloy, 25.4 mm clamp, 10-degree, 110 mm length

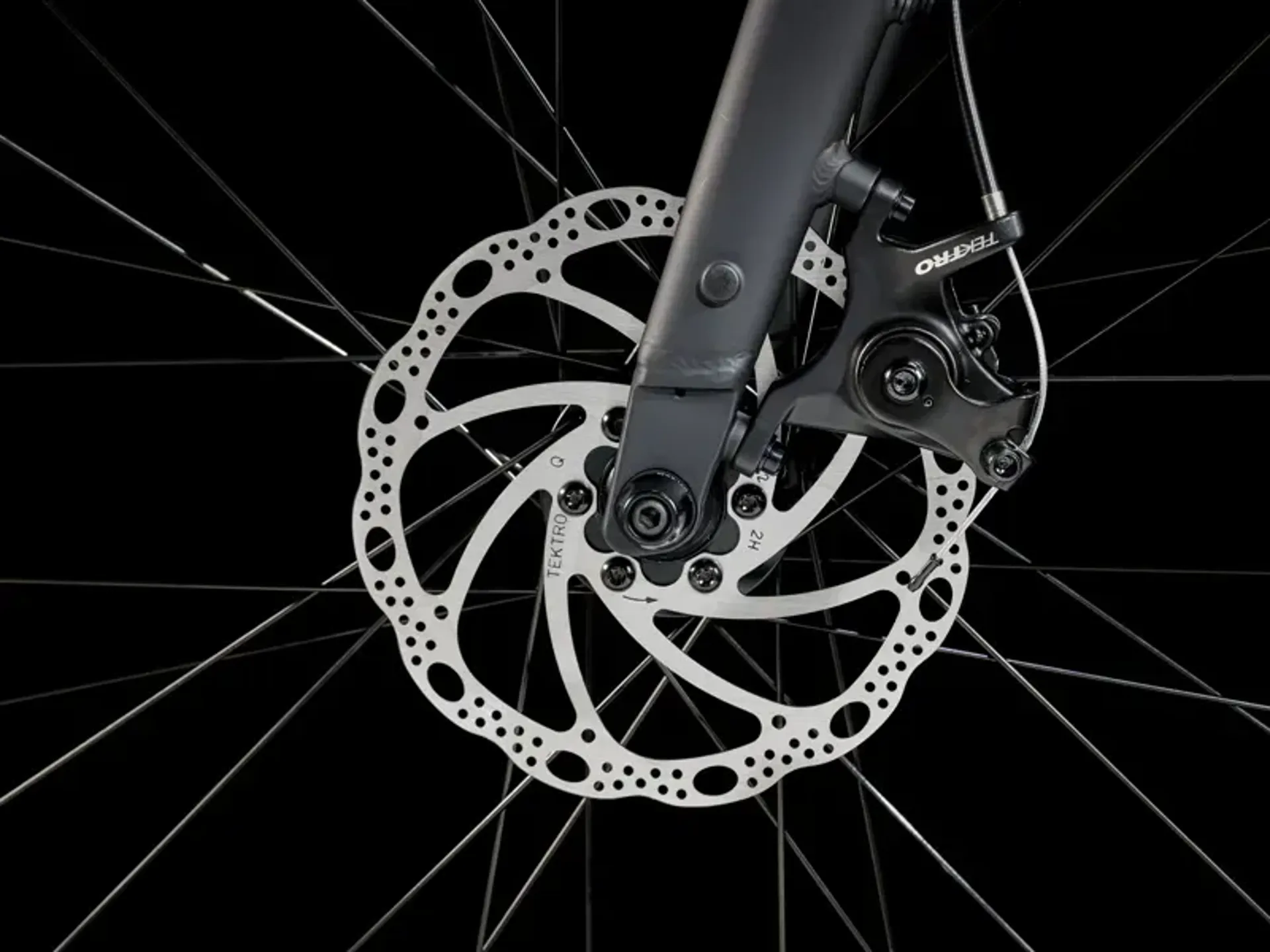

Brake
Tektro MD-U310 mechanical disc
Brake Rotor
Tektro wave, 6-bolt, 160 mm
Rotor Size
Max brake rotor sizes: 160 mm front and rear
Weight
M - 14.05 kg / 30.98 lb
Weight Limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
