Frameset
Frame with Fork
300 Series Alpha Aluminum, tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm thru axle
Fork
Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
Weight
Weight
56 - 9.60 kg / 21.17 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
Drivetrain
Shifter
SRAM Apex, 12-speed
Rear derailleur
SRAM Apex XPLR, 44T max cog
*Crank
Size: 49
SRAM Apex 1, 40T, DUB Wide, 165 mm length
Size: 52
SRAM Apex 1, 40T, DUB Wide, 170 mm length
Size: 54, 56
SRAM Apex 1, 40T, DUB Wide, 172.5 mm length
Size: 58, 61
SRAM Apex 1, 40T, DUB Wide, 175 mm length
Bottom bracket
SRAM DUB, T47 threaded, internal bearing
Cassette
SRAM XG-1230, 11-44, 12-speed
Chain
SRAM Apex, 12-speed
Max. chainring size
1x: 44T, 2x: 50/34
Wheels
Hub front
Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
Skewer front
Bontrager Switch thru axle, removable lever
Hub rear
Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Bontrager Paradigm, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Tyre
Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700 x 40 c
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tyre size
See service manual
Components
*Saddle
Size: 49, 52
Bontrager Verse Comp, steel rails, 155 mm width
Size: 54, 56, 58, 61
Bontrager Verse Comp, steel rails, 145 mm width
Seatpost
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length

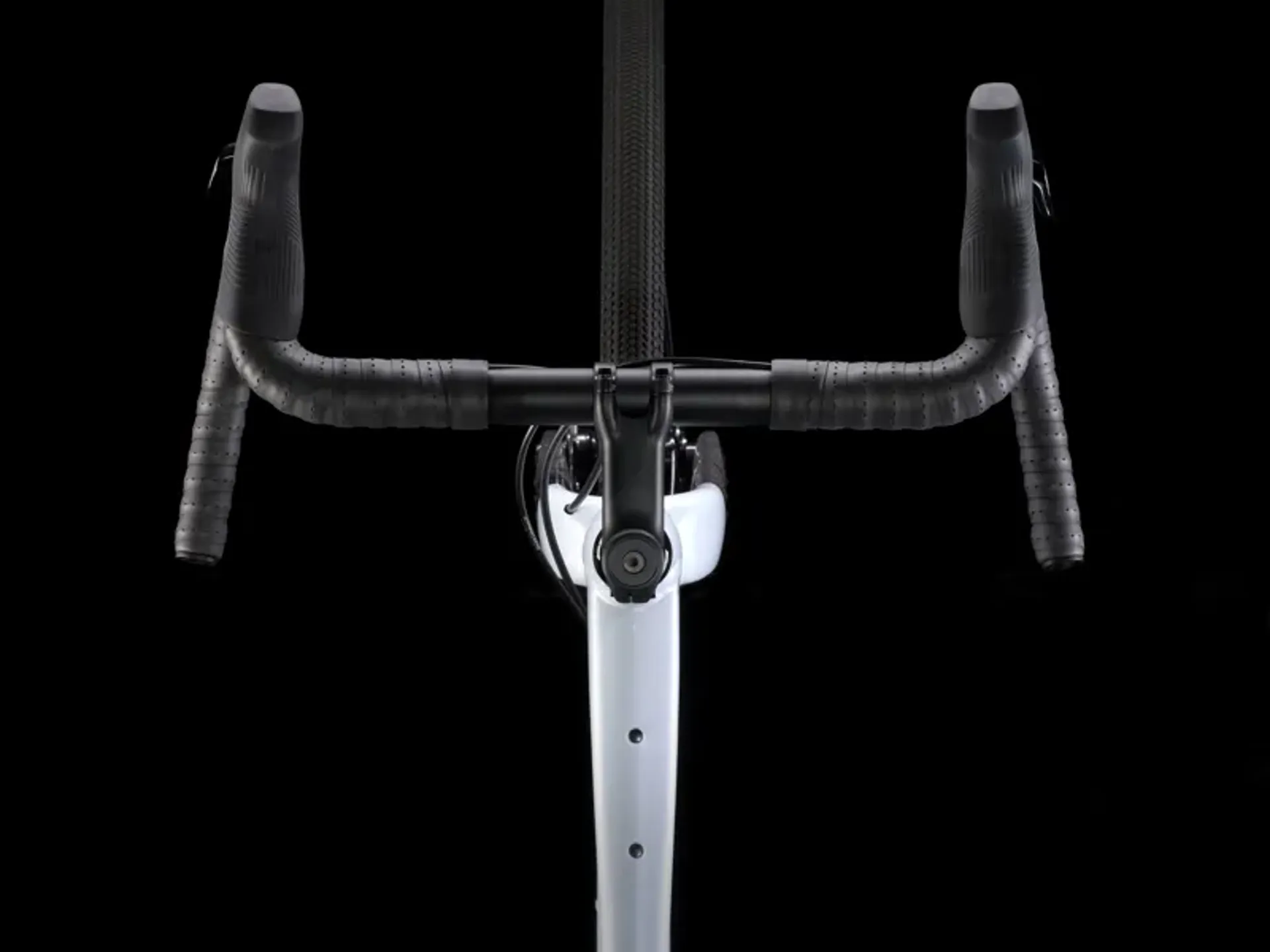

*Handlebar
Size: 49
Bontrager Elite Gravel, 38 cm width
Size: 52
Bontrager Elite Gravel, 40 cm width
Size: 54, 56
Bontrager Elite Gravel, 42 cm width
Size: 58, 61
Bontrager Elite Gravel, 44 cm width
Handlebar tape
Bontrager Supertack Perf tape
*Stem
Size: 49
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size: 52, 54
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: 56, 58
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size: 61
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length

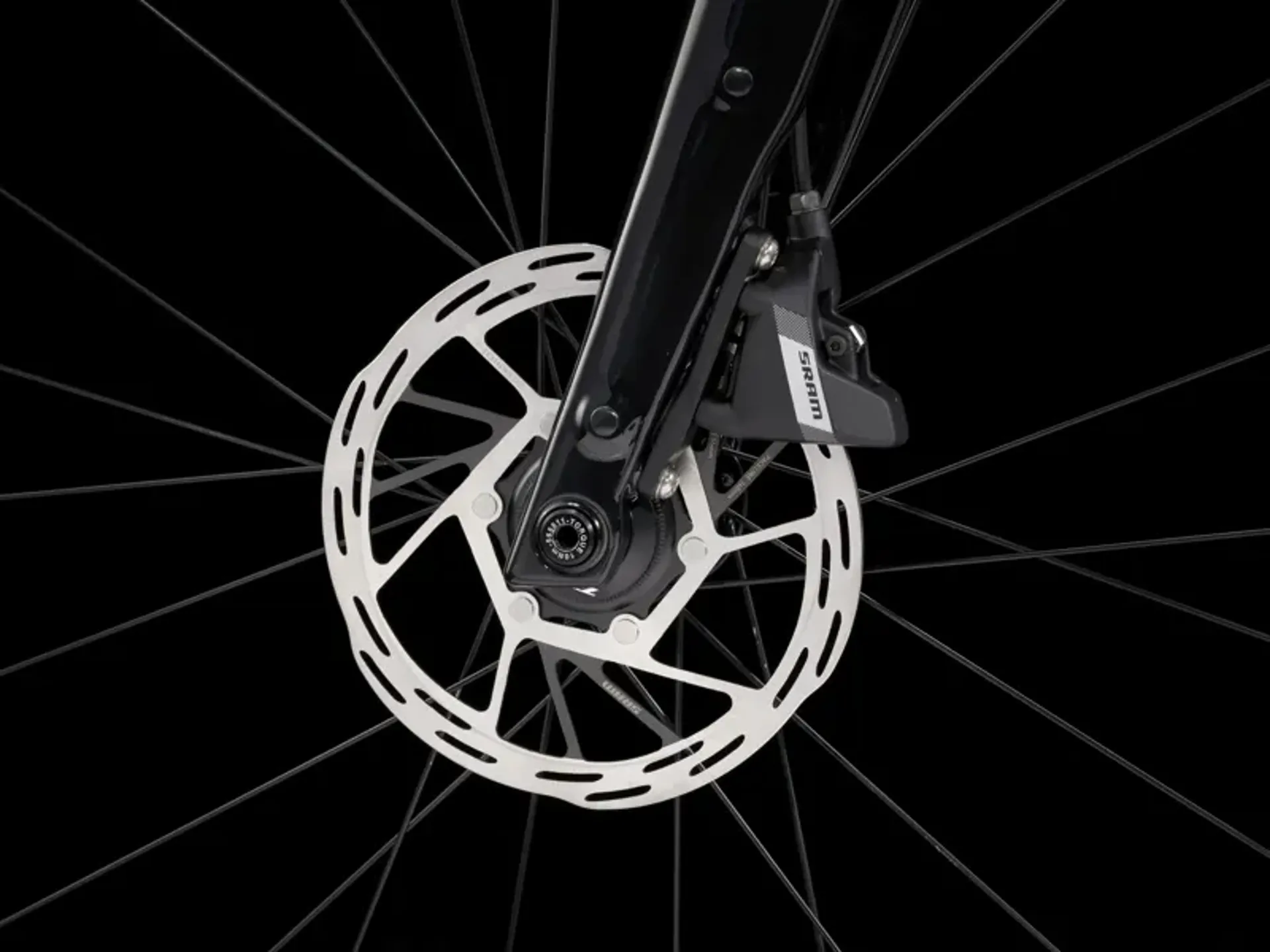

Brake
SRAM Apex hydraulic disc, flat mount
Brake rotor
SRAM Paceline, rounded, CentreLock, 160 mm
Brake lever
SRAM Apex, 12-speed
Rotor size
Max brake rotor sizes: 160mm front & rear
